Research Article | Open Access
Madhumita Pal1,2, Smita Parija1 , Ganapati Panda1, Snehasish Mishra3,Ranjan K. Mohapatra4 and Kuldeep Dhama5
1Department of Electronics and communication Engineering, CV Raman Global University, Bidyanagar, Mahura, Janla, Bhubaneswar, Odisha, India.
2Department of Electrical Engineering, Government College of Engineering, Keonjhar, Odisha, India.
3School of Biotechnology, Campus-11, KIIT Deemed University, Bhubaneswar, Odisha, India.
4Department of Chemistry, Government College of Engineering, Keonjhar, Odisha, India.
5Division of Pathology, ICAR-Indian Veterinary Research Institute, Izatnagar, Bareilly, Uttar Pradesh, India.
Article Number: 8413 | © The Author(s). 2023
J Pure Appl Microbiol. 2023;17(2):919-930. https://doi.org/10.22207/JPAM.17.2.20
Received: 08 January 2023 | Accepted: 01 February 2023 | Published online: 04 May 2023
Issue online: June 2023
Abstract

Global public health is overwhelmed due to the ongoing Corona Virus Disease (COVID-19). As of October 2022, the causative virus SARS-CoV-2 and its multiple variants have infected more than 600 million confirmed cases and nearly 6.5 million fatalities globally. The main objective of this reported study is to understand the COVID-19 infection better from the chest X-ray (CXR) image database of COVID-19 cases from the dataset of CXR of normal, pneumonia and COVID-19 patients. Deep learning approaches like VGG-16 and LSTM models were used to classify images as normal, pneumonia and COVID-19 impacted by extracting the features. It has been observed during the COVID-19 pandemic peaks that large number of patients could not avail medical beds and were seen stranded outdoors. To address such health emergency situations with limited available bed and scarcity of expert physicians, computer-aided analysis could save precious lives through early screening and appropriate care. Such computer-based deep-learning strategy could help during future pandemics, especially when the available health resources and the need for preventive measures to take do not match the burden of a disease.

Keywords

COVID-19 Prognosis, X-ray Image, Deep Learning, Long Short-term Memory (LSTM), VGG 16

Introduction

The continuously emerging and reemerging SARS-CoV-2 variants have led to a huge health crisis worldwide. Besides health crisis, the pandemic has significantly affected global economy.1 The pathogen grappled the globe with multiple waves after originating from Wuhan, China, in the late 2019.1-4 This pandemic highly transmissible virus in its multiple mutated variant forms has killed millions globally, mainly due to human-human transmission.5 Initially, the Delta variant was most deadly and later the Omicron variant and its sub-lineages prevailed as the most infective ones. Emerging sub-lineages like BA.1, BA.2, BA.3, BA.4/5, BA.2.75, BA.4.6 tremendously affected healthcare infrastructure at global-scale.  The virus reportedly gradually infected the upper and lower respiratory system, heart, kidney, liver, gut and the nervous system, leading to multiorgan damage.6,7 It also causes severe health issues in the immunocompromised or comorbid with diabetes, obesity, cardiovascular disorder, psychiatric disorder, etc.8-10

The currently circulating highly transmissible and immunity-evasive subvariants like XBB, BF.7, BQ.1and BQ.1.1.11-14 To contain the virus, numerous measures were implemented. However, its continuously emerging mutating multiple virus variants have tremendously affected global healthcare infrastructure. Another major challenge that surfaced is the shortage of test kits and similar medical gadgets. Also, the seemingly low safety and efficacy of the available COVID-19 vaccines also play a crucial role in the emergence of virus variants.15,16 The pandemic continues to threaten the global population as a result. In such a scenario, early and automatic screening of samples may improve healthcare facility worldwide to handle the extraordinary health crisis. Various AI-based (especially ML and DL) techniques have been tried previously, for automatic screening of COVID-19 cases.17

Zhang et al.18 developed CNN architecture for early automatic diagnosis of COVID-19 cases. They proposed the CNN-based approach for prognosis by utilising three different views of the CXR image (left lung, right lung and overall view) to extract individual features. The proposed model is effective for binary classification of healthy and COVID-19 cases. Haque and Abdelgawad19 reported a custom convolutional neural network model to detect COVID-19 with 98.3% accuracy. A major issue of this model is, it cannot differentiate COVID-19 cases from other non-COVID cases (like pneumonia). Ghoshal and Tucker20 applied a Bayesian convolutional neural network (BCNN) on publicly available COVID-19 CXR images. Results demonstrated an improved (85.2–92.9%) detection accuracy using VGG-16 model. Islam et al.21 proposed DL technique to automatically detect COVID-19 from CXR images by combining CNN and LSTM. This model achieved 99.4% accuracy with high degree of sensitivity and specificity. Narin et al.22 used InceptionV3, ResNet50 and InceptionResNetV2 models to categorise CXR images into COVID-19 and normal. With the small dataset for binary classification, they achieved highest accuracy (98%) using ResNet50. Shorfuzzaman et al.23 proposed a novel CNN based DL fusion framework using transfer learning concept to detect COVID-19 from CXR images with 95.49% classification accuracy. The performance of the proposed models was assessed with CXR image dataset of the healthy, COVID-19 and the pneumonia infected. This research work presents two deep learning approaches using CXR images for early automatic prognosis of COVID-19.

Materials and Methods

Methodology
The COVID-19 CXR image dataset was used to perform COVID-19 prognosis. Dataset used for the work was sourced from https://github.com/ieee8023/covid-chestxray-dataset.24 It contained 5863 images collected from hospitals, public sources and directly from physicians. It had 94 normal CXR images, 506 of COVID-19 and 46 of pneumonia. Two deep learning models, VGG16 and LSTM, were implemented to study the normal, COVID and pneumonia cases from the images. The study plan is schematically presented in Figure 1. The COVID-19 CXR image database was considered first. Then the features from the images were extracted. Then, deep learning models with 200 epochs were implemented on the database. 80% data were considered for training and 20% data for the run. The performance accuracy, the ROC (receiver operating characteristics curve), precision, recall and F1 score of each model were ascertained. SoftMax classifier was used to classify images into normal, COVID-19 and pneumonia.

Figure 1. CXR images classification for diagnosis-based COVID-19 transmission probability

Figure 2. Sample CXR images from curated dataset: a) normal; b) COVID-19; c) pneumonia

Dataset
As indicated, the dataset for the study was accessed from the publicly available resources (at https://github.com/ieee8023/covid-chestxray-dataset). Dataset was processed in Python open-source software. Tensor Flow environment was used to process. Keras, Pandas, NumPy, and matplotlib packages were used. The data were contained in two folders, one to train and the other for test, and both train and test folders contained three subfolders (normal, COVID-19 and pneumonia; In Figure 2, the normal CXR image depicted clear lungs without any abnormal opacity, COVID-19 image exhibited a focal lobar consolidation, and pneumonia image had a more diffuse interstitial pattern in both the lungs. The dataset contained 6432 X-ray images in all and 20% of the images were considered as test data. All CXR images were curated for consistency and quality by removing all low quality or unreadable scans before clearing for training the AI system.

No. of training images of Normal CXR: 1266
No. of training images of COVID CXR: 460
No. of training images of pneumonia CXR: 3418
Total: 5144
No. of test images of Normal CXR: 317
No. of test images of COVID CXR: 116
No. of test images of pneumonia CXR: 855
Number of test images: 1288

Data preprocessing
Image preprocessing and augmentation API of Keras (known as ImageDataGenerator) was used during the training. Following operations were performed by the API on the data:

Rescaling: Performed for min-max scaling for pixels of each channel.
Rotation: Images were rotated within -10 to +10° range.
Lateral shift (width shift): Images were shifted laterally in either direction by 10%.
Vertical shift (height shift): Images were shifted vertically in top-down direction by 10%.
Horizontal flip: Mirrored image of the original X-ray scan were taken across the vertical axis.

The Rectified Linear Unit activation function triggered activation of each hidden layer. The form of the input image was [224, 224, 3]. Each model was trained for 200 epochs. The batch size was 32, the learning rate was set to 0.0001, and ADAM was used as the loss function. It was decided to train a cross-entropy loss function on all models.

VGG16
VGG16 (Figure 3) is an advanced version of CNN architecture with distinct feature. The architecture consists of convolutional layer, pooling layer and two fully connected layer. The last layer of the architecture is soft max classifier. It has less number of hyper parameters. Relu activation function is used for triggering the hidden layer units of CNN. The convolution and max pool layers are arranged in same fashion throughout the architecture. VGG16 contains differentially weighed 16 layers, a huge network with 138 million trainable parameters.

Total parameters: 134,272,835
Trainable parameters: 134,272,835
Non-trainable parameters: 0
{‘COVID-19’: 0, ‘NORMAL’: 1, ‘PNEUMONIA’: 2}

Figure 3. Structure of VGG16 model (created with Image online.co; ref. 25)

Long short-term memory (LSTM)
Long short-term memory (LSTM) is a DL (RNN) architecture developed by Hochreiter and Schmidhuber.26 LSTM has the ability to handle total data points instead of single data points. It contains memory elements and consists of input gate, forget gate and output gate which control the flow of information through LSTM architecture. LSTMs is a type of RNN used for eliminating the long term dependency problem and can remember information for longer duration due to its feedback connection.27 Sigmoid gate is known as forget gate which helps in selection of data passing though LSTM architecture. The sigmoid function forms the input layer which takes the output of the last LSTM unit (ht1) at time t=1 and the current input (xt) at time t, which determines the process of detecting and excluding data. The sigmoid function also determines which aspect of the earlier output could be removed. Tanh layer is an added new vector (ĉ) to update state value. ht-1 and xt form the forget gate (Figure 4) and returns 0 and 1 as the value, 1 representing storing the information and 0 representing removing the information from the cell.

The output of forget gate from Figure 2 is:

ft = σ(Wf.[ht-1Xt] + bf)          …(1)

it = (Wt.[ht-1,Xt]+bt               …(2)

ĉt = tanh (Wc. [ht-1,Xt] + bc  …(3)

Ct = ft X Ct-1 + it X Ct             …(4)

Ot = (W0.[ht-1, Xt]+bo)          …(5)

ht = Ot X tanh(Ct              …(6)

where, Ct-1 = old cell state, Ct = new cell state, σ = sigmoid layer, tanh = tan hyperbolic layer

Figure 4. Block diagram for LSTM architecture (tanh lied between -1 and 1; σ between 0 and 1)

RESULTS AND DISCUSSION

CXR image database accessed from the GitHub site containing three groups of RGB images, normal CXR, COVID CXR and Pneumonia CXR was used for the study. LSTM and VGG16 models were implemented to classify the images. The performance of each model in terms of confusion matrix, receiver operating characteristics curve (ROC), training and validation accuracy loss curve are explained below.

Table (1):
Confusion matrix report of LSTM model.

X-Ray image type
TP
FN
FP
TN
COVID-19
111
05
01
1171
Normal
287
30
35
936
Pneumonia
820
35
34
399

Table (2):
Confusion matrix report of VGG16 model.

Types of X-ray image
TP
FN
FP
TN
COVID-19
110
05
05
1165
Normal
277
39
31
938
Pneumonia
820
34
42
389

Performance measure in terms of confusion matrix
The confusion matrix of each model was assessed (Table 1 and 2). It is a matrix that measures the ability of a deep learning model to classify images (as normal, COVID-19, and pneumonia in this case). Being a three-class problem a 3*3 confusion matrix where the first cell represented the true positive samples was implemented. The confusion matrix contained four parameters as True Positive (TP), True Negative (TN), False Positive (FP) and False Negative (FN) as detailed below:

TP
A true positive value had the actual and anticipated values as same. It represented the actual number of disease cases.

FN
Cells 2 and 3 represented false negative values. The FN value was the sum of the values of corresponding rows except the TP value. It accounted for all COVID-19 and pneumonia positive cases that were misdiagnosed as negative cases.

FP
The false positive value was the sum of the values of the corresponding column except the TP value. It accounted for all COVID-19 and pneumonia negative cases misdiagnosed as positive cases.

TN
The true negative value was the sum of all columns and rows excluding the values of the class for which the values were being calculated. It indicated the number of healthy patients that were actually not suffering from either COVID-19 or pneumonia.

The confusion matrices of each model are presented in Figure 5 and 6.

Figure 5. Confusion matrix of LSTM model

Figure 6. Confusion matrix of VGG16 model

Model performance in terms of ROC curve
The graph between true positive (TP) and false positive (FP) rates showed the ability of deep learning models to classify. More the area covered by the curve more shall be the accuracy of the prognosis by a model. ROC curves of each model are shown in Figure 7 and 8. VGG16 model performed better than LSTM in prognosing COVID-19 and pneumonia patients with a ROC value of 100% and 99%, respectively (Figure 8). LSTM model prognosed COVID-19, pneumonia and normal patients with 97%, 98% and 96% ROC values, respectively. The performance metrics formulae of DL models are as bellow:

Precision (P) = TP / TP + FP

Recall or TP, R = TP / TP + FN

F1- score = 2 X [ P X R  / P + R ]

FPR = FP / FP + TN

Performance of models in terms of precision, recall and F1 score
Performance parameters of the models for the image database are provided in Table 3. The precision, recall and F1 score for VGG16 and LSTM models were obtained from Table 3. VGG16 returned reliable precision (0.95), recall (0.95) and F1 score (0.95) values for COVID-19 prognosis. For normal classification, the values obtained were precision: 0.91, recall: 0.95 and F1 score: 0.93. For pneumonia prognosis, the values obtained were precision: 0.95, recall: 0.90 and F1 score: 0.93. Compared to VGG16 the performance of LSTM model on precision (0.86), recall (0.82) and F1 score (0.84) in COVID-19 prognosis was relatively low, and the model returned precision, recall and F1 score values of 0.95, 0.86 and 0.90 respectively for normal classification. The performance of LSTM model for pneumonia classification was precision: 0.79, recall: 0.90 and F1 score: 0.84 values, respectively. High recall value indicated lower false negative prognosis values. False negative prognosis may misdiagnose a patient. Among the two test models, VGG16 was suitable for correct COVID and pneumonia prognosis as it exhibited higher recall value.

Table (3):
Performance parameter values of deep learning models.

Deep learning model Chest X-ray type Precision recall F1 score
VGG16 Normal 0.96 0.96 0.96
COVID 0.90 0.88 0.89
Pneumonia 0.95 0.96 0.96
LSTM Normal 0.99 0.96 0.97
COVID 0.89 0.91 0.90
Pneumonia 0.96 0.96 0.96

Figure 7. ROC curve of LSTM model

Figure 8. ROC of VGG16 model

Model performance in terms of training and validation curve
LSTM model provided 92% validation accuracy and 88% training accuracy after 200 epochs (Figure 9). Validation loss of 0.01 and training loss of 0.001 were obtained at 11 epochs. After 11 epochs validation accuracy was superior to the training accuracy. Validation accuracy was at its maximum value at 35 epochs. At 200 epochs, 0.2 validation loss and 0.1 training loss were obtained.

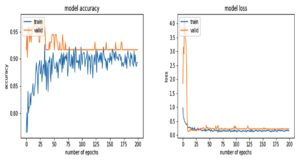

Figure 9. Accuracy and loss curve of LSTM model

Figure 10. Accuracy and loss curve of VGG16 model

VGG16 model returned best performance compared to LSTM model (Figure 10). The training accuracy showed better performance than validation accuracy initially for VGG16 model. Validation accuracy improved after 11 epochs as compared to training accuracy. It performed superior to training accuracy with 100% accuracy at 71 epochs and after that it remained constant. Validation accuracy remained constant at 97% with a loss of 0.05 after 71 epochs, whereas training accuracy maximised to 98.94% at 145 epochs. A validation loss of 0.05 with 11 epochs and a training loss of 0.12 after 145 epochs were observed. A validation accuracy of 0.97 and a loss of 0.07, and training accuracy of 0.95 and a loss of 0.13 were obtained at 200 epochs.

 Comparative analysis
The performance and reliability of the proposed systems were compared with the state-of-art COVID-19 probing systems. Outcome of the first version of the proposed system is presented and compared with conventional methods in Table 4. The proposed system demonstrated remarkably accurate results compared to conventional methods. Also, the proposed improved Resnet-50 system is lightweight as compared to models like VGG16 or DenseNet. The proposed system outperformed the existing methods on precision, accuracy, sensitivity and F1 score. Table 4 lists the findings of the auto-prognosis of COVID-19 using CXR images which was contrasted with the suggested model. Narin et al.22 used 26 million parameters for COVID-19 prognosis, the two improved models outperformed other models in terms of accuracy (Table 4). Proposed VGG16 model used roughly five times as many (134 million parameters). This model costs more while is marginally higher on accuracy (97.5%) compared to other models.

Table (4):
Deep learning methods and techniques used in COVID-19 using CXR images.

Study
Architecture
Accuracy (%)
References
Apostolopoulos et al.
VGG-19
93.48%
28
Narin et al.
InceptionV3
97
22
Sahinbas and Catak,
VGG-16, VGG-19,
80
29
ResNet, DenseNet,
InceptionV3
Guefrechi et al.
Resnet50
97.20
30
Jamil and Hussain
Deep CNN
93
31
Joaquin
ResNet-50
96.2
32
Brunese et al.
VGG-16
96
33
Rajaraman and Antani,
VGG16
93
34
Proposed model
LSTM
92
VGG16
97
CONCLUSION

This paper demonstrates application of VGG16 and LSTM deep learning techniques to CXR images for COVID-19 prognosis, using public repository dataset for multi-class and binary classification tasks. The LSTM model provided 98% validation accuracy and 92% training accuracy while the respective figures were 100% and 98.94% for VGG16. The validation loss of 0.01 and training loss of 0.001 were observed at 11 epochs in LSTM while the respective figures were 0.05 after 11 epochs and 0.12 after 145 epochs for VGG16. Proposed models exhibited higher degree of accuracy compared to previously reported works. A significant finding of the work was that, data fusion models can further increase diagnosis and prediction performances and build an effective model with larger database. The models would assist the clinicians in prognosis of COVID-19 critical patients effectively in few minutes that will be very helpful to empower the healthcare infrastructure especially in overwhelming healthcare emergency situation as the ongoing COVID pandemic. Early diagnosis could crucially curb viral transmission and facilitate in containing the infection. The authors plan to work on multi-criteria classification as an extended research work to decipher images with mixed lung infections due to several simultaneous infections like tuberculosis, AIDS, COVID-19, etc.

Declarations

ACKNOWLEDGMENTS
None.

CONFLICT OF INTEREST
The authors declare that there is no conflict of interest.

AUTHORS’ CONTRIBUTION
MP and RKM conceptualized the study.  MP performed the study. MP, SP and GP analysed and interpreted the data. MP and RKM wrote the original draft. SM, KD wrote, reviewed and edited the manuscript. All authors read and approved the final manuscript for publication.

FUNDING
None.

DATA AVAILABILITY
The datasets generated and/or analysed during the current study are available from the corresponding author on reasonable request.

ETHICS STATEMENT
Not applicable.
